Brand Name: Y-SOLARModel Number: MPPT T40is_customized: YesApplication: Charger ControllerApplication: Voltage ControllerApplication: Solar System ControllerApplication: Solar Working StationApplication: Lighting ControllerMaximum Current: 40AMaximum Power Current: 40ABattery(under voltage) recovery voltage: 12.6V(12V system) 25.2V(24V...
Availability: 1246 In Stock

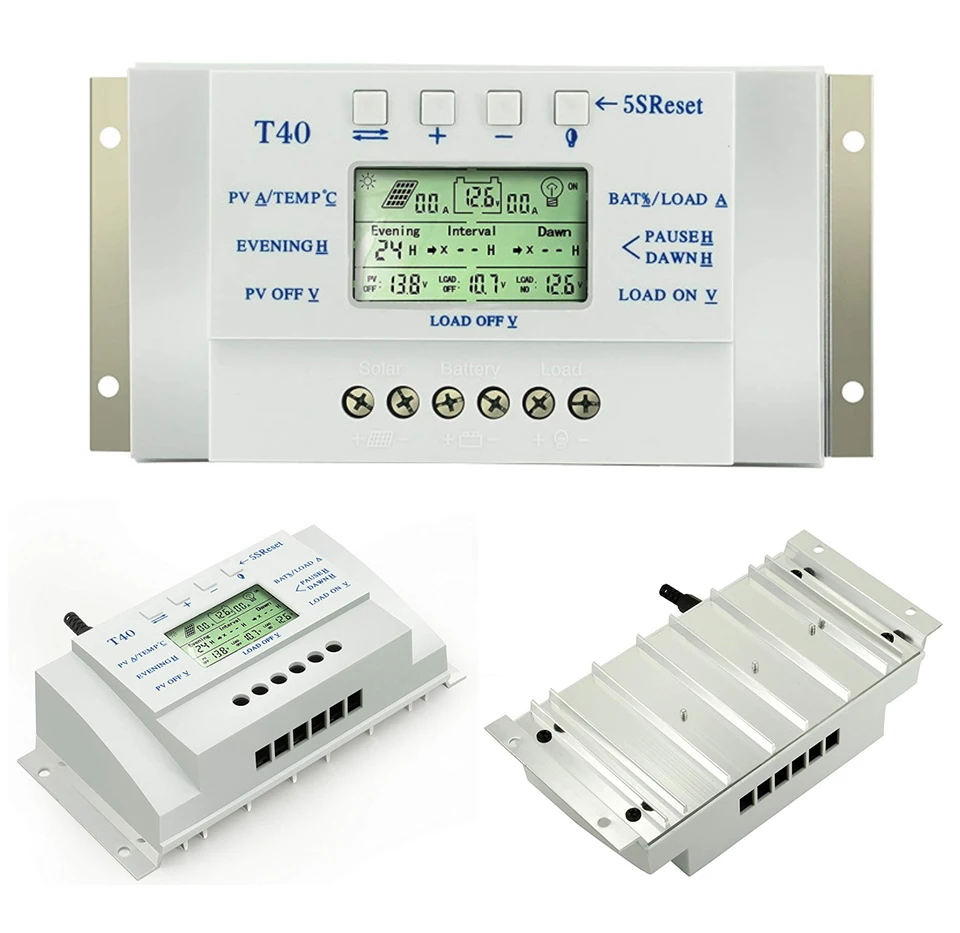

Brand Name: Y-SOLAR
Model Number: MPPT T40
is_customized: Yes
Application: Charger Controller
Application: Voltage Controller
Application: Solar System Controller
Application: Solar Working Station
Application: Lighting Controller
Maximum Current: 40A
Maximum Power Current: 40A
Battery(under voltage) recovery voltage: 12.6V(12V system) 25.2V(24V system)
Battery (under voltage) protection: 10.6V(12V system) 21.2V(24V system)
Battery float voltage: 13.8V(12V system) 27.6V(24V system)
Peak power of solar cell panel (Max Wp): Max 750W(12V System) 1500W(24V system)
Weight: 500g
Installation Lin (mm2): 12 mm2
Installation Lin(AWG): 6#(AWG)
Battery capacity configuration: 400AH
Peak power of solar panel(Max Wp): 500W
